Hazardous Location Universal Red/Green Combo Exit Light | Class 1 Division 2 | IP66 | NEMA4X
Base Code: COC1D2-U
Items marked FAST SHIP typically ship same day if order is placed before noon
$485.00
The COC1D2-U Hazardous Location Combo Exit Sign combines illuminated EXIT identification and emergency lighting in one rugged fixture designed for demanding environments. UL Listed for Class I, Division 2, Groups A, B, C & D hazardous locations with a T4A rating, the unit features a durable polycarbonate enclosure with NEMA 4X and IP66 protection for wet, outdoor, and washdown locations. Red or green 6" EXIT lettering is field selectable, with universal single- or double-face configuration and removable directional indicators. Two fully adjustable 5000K LED lamp heads provide emergency egress illumination, while a maintenance-free LiFePO4 battery supplies at least 90 minutes of emergency operation. Available with self-testing/self-diagnostics and cold-location configurations. NSF/ANSI 2 certified for splash-zone applications in food processing and food service environments.
Compatible Remote Head(s): RH-C1D2
Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
- Rated for Class 1, Division 2, Groups A, B, C & D.
- UL Listed for Wet Locations & IP66 Rated for Ingress Protection
- Universal 120-277VAC 50/60Hz Input
- Selectable Red or Green LED EXIT Illumination
- Internal solid-state transfer switch
- Maintenance-Free LiFePO4 Battery with 90-Minute Emergency Operation
- Fiberglass reinforced polycarbonate construction
Specifications
| Dimensions (May Vary by Model) | |
| Height | 11.63" |
| Depth | 3.25" |
| Length | 14.88" |
| Weight | 20.00 lb |
What's included?
- LEDC1D2 Universal Combo Exit Sign
- Mounting Hardware
- Installation Instructions
Construction
The COC1D2-U features a durable polycarbonate enclosure with 5VA flame-retardant and UV-resistant construction, along with stainless steel hardware for outdoor applications. The universal design supports single- or double-face configurations and features 6" EXIT lettering with a 3/4" stroke for a 100-foot viewing distance. Removable directional indicators allow for field configuration, while Allen socket screws help prevent unauthorized access to the unit.
CERTIFICATIONS
The COC1D2-U is UL Listed and designed to meet or exceed UL 924, UL 844, CSA C22.2 No. 141-15, CSA C22.2 No. 137-18, NEC, OSHA, and NFPA 101 Life Safety Code requirements. The unit is NEMA 4X rated for ingress protection and rated for Class I, Division 2, Groups A, B, C & D hazardous locations with a T4A temperature rating. The unit also conforms to CEC Title 20 requirements and FCC Part 15, Subpart B, Class A.Illumination
The COC1D2-U features field-selectable red or green EXIT illumination, with red as the factory default. Two fully adjustable 5000K LED lamp heads provide high-output emergency illumination and allow for flexible positioning to maximize egress coverage and fixture spacing.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90-120 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
Battery - Battery Backup
The COC1D2-U Exit Sign series incorporates a 9.6V 5000mAH maintenance-free LiFEPO4 battery that provides a minimum emergency duration of 90-120 minutes. Recharge time of the battery is 24 hours.
Operational Temperature
| Temperature Ratings | |
| Standard Option | 32°F to 122°F |
| Expanded Temp Rating | -13°F to 122°F |

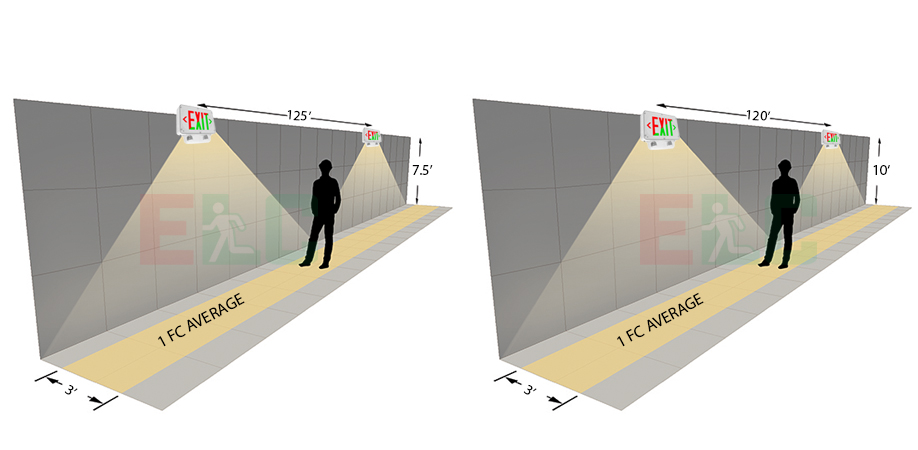

Photometrics
Total Luminaire Lumens : 1600lm
| Mount Height | 3 FT Width Egress Path | 6 FT Width Egress Path |
|---|---|---|
| Fixture to Fixture | Fixture to Fixture | |
| 7.5 ft | 125 ft | 120 ft |
| 101 ft | 120 ft | 118 ft |
Disclosure: Spacing values are based on photometric calculations under laboratory conditions, assuming an open area with no obstructions and reflectance values of 80% ceiling / 50% walls / 20% floor. Actual spacing and illumination levels may vary depending on mounting conditions, room geometry, surface reflectance, obstructions, and other site-specific factors.
Self-Testing Option
The COC1D2-U features automatic self-testing and self-diagnostics, performing required monthly and annual tests while continuously monitoring AC power, the charging circuit, battery voltage, and AC-to-emergency transfer operation. A manual test can also be initiated using the built-in slider switch for convenient inspection and maintenance.
NSF/ANSI 2 CERTIFIED
The unit is certified to conform to NSF/ANSI 2-2022 (Food Equipment). Its design, construction, and material selections comply with requirements for splash-zone applications in food processing and food service environments.Remote Head Capable Option
The COC1D2-U series offers (2) 5.5W remote capacity.
Electrical Components
The COC1D2-U operates on universal 120–277VAC, 50/60Hz input and includes a maintenance-free LiFePO4 battery that provides 90 minutes of emergency operation with a 24-hour recharge time. A finger-sensing test switch and LED status indicator allow for convenient code-required testing. The solid-state circuitry includes brownout transfer, low-voltage disconnect, overload protection, short-circuit protection, and automatic AC-to-emergency transfer.
Installation
The COC1D2-U is designed for surface wall mounting using die-cast mounting brackets and includes a conduit hub for conduit or pendant-mount installations. Rated for Class I, Division 2, Groups A, B, C & D hazardous locations with a T4A temperature rating. The NEMA 4X and IP66-rated enclosure is suitable for wet and outdoor locations, with cold-location configurations available for freezer and low-temperature applications.
Mounting Configurations Explained
View Installation Instructions

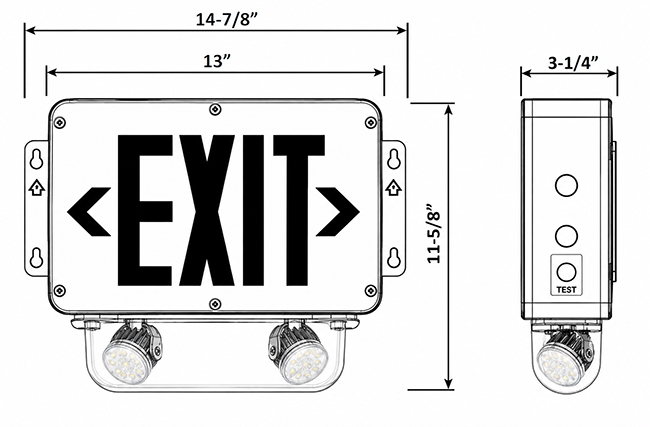

Dimensions
