LED Hazardous Location Remote Head Lamp | Class 1 Division 2 | 6/12VDC
Base Code: RH-C1D2
Items marked FAST SHIP typically ship same day if order is placed before noon
$200.00
The RH-C1D2 Hazardous Location Remote Head Lamp allows for additional lighting where hazardous locations are present. UL Listed for use in Class 1, Division 2, Groups A, B, C & D rated areas. This unit offers several levels of protection against the elements, including dust, dirt and water and is designed for use in hostile environments that would otherwise damage ordinary remote head components. Constructed of impact and corrosion resistant fiberglass reinforced polycarbonate. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware.
Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
- IP66 rated for Ingree Protection
- Rated for Class 1, Division 2, Group A, B,C, & D
- UL Listed for Wet Locations
- Requires 6/12VDC Power Source
- MR16 Base Style LED Lamps
Specifications
| Dimensions (May Vary by Model) | |
| Height | 5.5" |
| Depth | 4.88" |
| Length | 9.65" |
| Weight | 15.00 lb |
What's included?
- Hazardous Location Remote Head Light
- Mounting Hardware
- Installation Instructions
Construction
The RH-C1D2 LED remote head lamp series is contructed of fiberglass reinforced construction in gray finish. Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws. Tamper-proof hardware is available for unauthorized access to the unit.
Illumination
The EL-C1D2 Emergency Light series is designed with two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamp heads for optimized center to center spacing.
Battery - Battery Backup
The RH-C1D2 LED remote head lamp series does not have a battery. This remote head requires to be connected to a battery + remote head capable unit.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Standard | 32°F to 122°F |
Photometrics
Total Luminaire Lumens : 176lm per lamp head
Input Wattage: 3.47
Single Lamp Head: Mounting height of 7.5ft-10ft illuminates 1 footcandle (FC) spaced at 20ft for a 3ft path of egress.
Double Lamp Head: Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 45ft for a 3ft path of egress.
Double Lamp Head: Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 38ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Electrical Components
The RH-C1D2 LED remote head lamp series is powered from low voltage 6V/12V DC power source with low voltage wiring (not provided).
Installation
The RH-C1D2 remote head lamp series is suitable for surface wall mount installation with its die-cast mounting brackets. Distance of maximum run is determined by system voltage, wire gauge, and total maximum wattage on the run.
Mounting Configurations Explained
View Installation Instructions

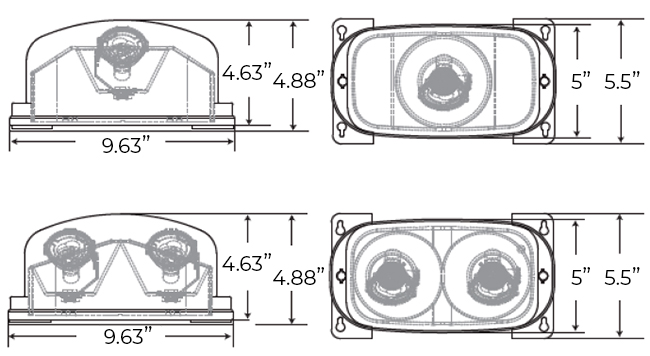

Dimensions
