LED Hazardous Location Emergency Light | Class 1 Division 2 | Adjustable Lamp Heads

Base Code: EL-C1D2

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Hazardous Location Emergency Light | Class 1 Division 2 | Adjustable Lamp Heads

Lead Time: 5-7 Days


The EL-C1D2 Hazardous Location Emergency Light combines energy-saving LED technology, with a durable enclosure suitable for hazardous locations. UL Listed for use in Class 1, Division 2, Groups A, B, C & D rated areas. This unit offers several levels of protection against the elements, including dust, dirt and water and is designed for use in hostile environments that would otherwise damage ordinary sign components. Constructed of impact and corrosion resistant fiberglass reinforced polycarbonate. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware.

Compatible Remote Head(s): RH-C1D2

Class 1 Division 2 Rated

Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.


  • UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
  • IP66 rated for Ingree Protection
  • Rated for Class 1, Division 2, Group A, B,C, & D
  • UL Listed for Wet Locations
  • 120/277 VAC dual-voltage input
  • Internal solid-state transfer switch
  • Universal knockout pattern on back
  • MR16 Base Style LED Lamps


Dimensions (May Vary by Model)
Weight15.00 lb

What's included?

  • Hazardous Location Emergency Light
  • Mounting Hardware
  • Installation Instructions


The EL-C1D2 Emergency Light series is contructed of fiberglass reinforced polycarbonate construction in gray finish. Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws. Tamper-proof hardware is available for unauthorized access to the unit.


The EL-C1D2 Emergency Light series is designed with two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamp heads for optimized center to center spacing.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The EL-C1D2 Emergency Light series is designed with a maintenance-free 6V/12V rechargeable NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Series Temperature
Standard 32°F to 122°F
Expanded Temperature Rating
-4°F to 122°F


Total Luminaire Lumens : 176lm per lamp head
Input Wattage: 3.47

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 45ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 38ft for a 3ft path of egress.


Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

LED Hazardous Location Emergency Light | Class 1 Division 2 | Adjustable Lamp Heads Photometrics

Self-Testing Option

Unit will automatically perform NFPA required monthly, bi-annual, and annual testing when Self-Testing + Battery Backup Operation is slected. Ensure reliable operation and meet electrical and safety codes.

Remote Head Capable Option

The EL-C1D2 Emergency Light series offers 7.8W of remote head capacity (6V/12V DC output) standard. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual 120/277 VAC operation. Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery). Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator.


The EL-C1D2 Emergency Light series is suitable for surface wall mount installation with its die-cast mounting brackets. Pre-installed conduit hub for conduit and pendant-mount installation.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

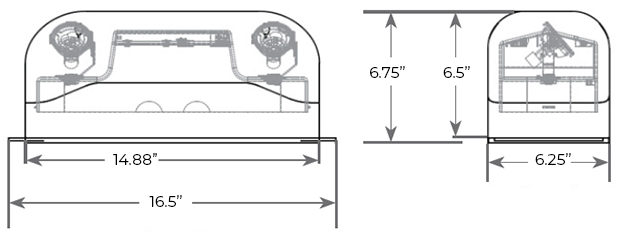

LED Hazardous Location Emergency Light | Class 1 Division 2 | Adjustable Lamp Heads Dimensions
