LED Recessed Architectural Emergency Light | Drop Ceiling Mount | Super Bright Large Light Spread

Base Code: EL-ARM

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Recessed Architectural Emergency Light | Drop Ceiling Mount | Super Bright Large Light Spread
Processing...

Get Help

Lead Time: FAST SHIP

Qty

NEW! EL-ARM architectural recessed mount LED light is the perfect addition to your lighting needs. Unique design that comes with 2 different lens type: Narrow Lens and Wide Lens. Makes it the perfect emergency light for any types of corridors or open spaces. The EL-ARM is UL 924, NEC, OSHA and NFPA 101 Life Safety Code approved. Features a 20-gauge steel back box with junction box and polycarbonate trim plate, makes it a convenient and inconspicuous unit. It is designed to work with drop ceiling applications (battery is accesible from top of unit only).

Compatible Battery:  6.2V 3200mAh LiFePO4

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • For use in Drop Ceiling Applications
  • LED indicator light with push-to-test switch
  • Narrow and Wide Lens
  • Universal 120-277 VAC 50/60Hz
  • Solid-state switching transistor - eliminates damage contacts

Specifications

Dimensions (May Vary by Model)
Height4.81"
Diameter7.25"
Weight6.00 lb

What's included?

  • White Recessed Light
  • 2 Lenses (Narrow and Wide)
  • Installation Instructions & Hardware
  • LiFePO4 Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-ARM Recessed Emergency Light is constructed from 20-gauge steel back box with junction box, trim plate is constructed from polycarbonate plastic. Friendly configuration design for quick and easy installation.

Illumination

The EL-ARM Recessed Emergency Light use long-lasting, efficient ultra bright white LEDs CCT 5000k. Equipped with 2 types of lenses for different types of illumination needs; wide and narrow lenses.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-ARM Recessed Emergency Light is designed with a maintenance-free 6.2V 3200mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Battery is only accessible from above the unit; access from an attic, crawl space, or drop ceiling tiles is recommended.

Operational Temperature

Temperature Ratings
Standard Option 50°F to 122°F

Photometrics

Total Luminaire Lumens : 950lm
Input Wattage: 2.0
Input mA: 25
Hz: 50/60

Download .IES File

Suggested mounting height of 9ft illuminates 1 footcandle (FC) spaced at 75ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 80ft for a 3ft path of egress.

Mounting height of 12ft illuminates 1 footcandle (FC) spaced at 78ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

LED Recessed Architectural Emergency Light | Drop Ceiling Mount | Super Bright Large Light Spread Photometrics

Self-Testing Option

Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Electrical Components

Universal voltage input 120-277 VAC 50/60Hz operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Features battery over discharge protection.

Installation

EL-ARM-ST-DROP is suitable for drop ceiling applications ONLY as the battery can only be access through the top of the fixture.

EL-ARM-ST is suitable for both new work and drop ceiling applications. Battery can be accessed through the bottom of the fixture.


Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

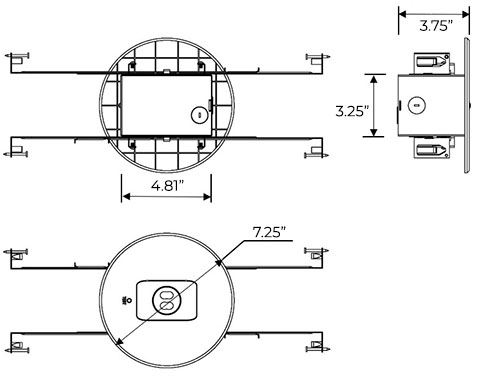

Dimensions

LED Recessed Architectural Emergency Light | Drop Ceiling Mount | Super Bright Large Light Spread Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Phil Juliani • 06/14/2023, 3:11:11 PM I would like to know if this light is emergency only and not lit all the time ? I need a recess fixture that only lights when power is down. Thanks, Phil
A Exit Light Co. The EL-ARM unit does not stay on all the time. From the website: EMERGENCY OPERATION Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Q John Gallagher • 01/16/2024, 10:32:41 PM does this have a manual push to test button?
A Exit Light Co. Yes, the LED indicator is also a test switch.
