Modern Design LED Emergency Light | 315° Adjustable Lamp Heads | Subtle Wall Mounting

Base Code: EL-CX

Items marked FAST SHIP typically ship same day if order is placed before noon

Modern Design LED Emergency Light | 315° Adjustable Lamp Heads | Subtle Wall Mounting


All LED mini design, efficient, and secure Emergency Light. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120-277 VAC. Universal mounting plate.
This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.


  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for indoor damp location
  • Two fully adjustable LED Lamp Heads
  • LED indicator light with push-to-test switch
  • Lightweight, injection molded, 94V-0 flame retardant thermoplastic housing
  • 120-277 VAC operation
  • Universal mounting plate
  • Innovative, easy installation in minutes


Dimensions (May Vary by Model)
Weight2.00 lb

What's included?

  • White All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


The EL-CX series is constructed from injection-molded, engineer-grade, 94V-0 flame retardant thermoplastic. White housing is standard.


The EL-CX features two fully adjustable 1W ultra bright LED lamps providing 144LMs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-CX Emergency Lights series is designed with a maintenance-free 3.6V 1000mAh NiCd battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 32°F to 104°F


Total Luminaire Lumens : 144
Input Wattage: .6W
Output Wattage: 2W

Download .IES File

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.


The EL-CX is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on back plate only.

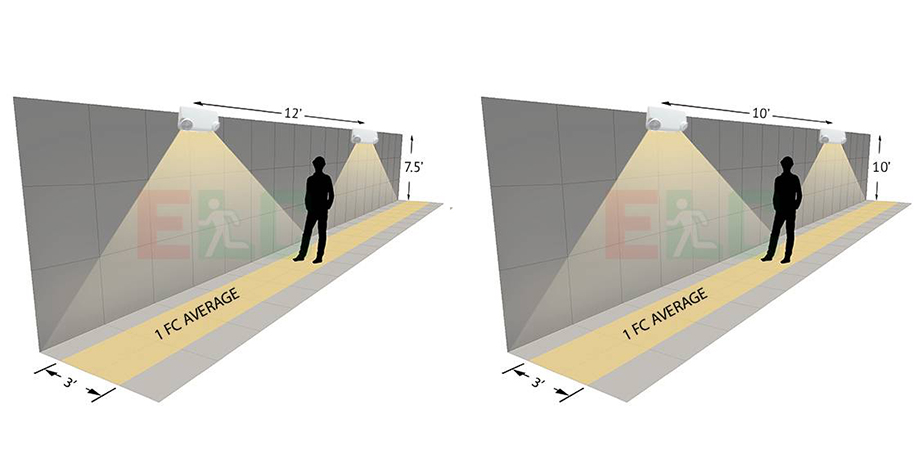

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

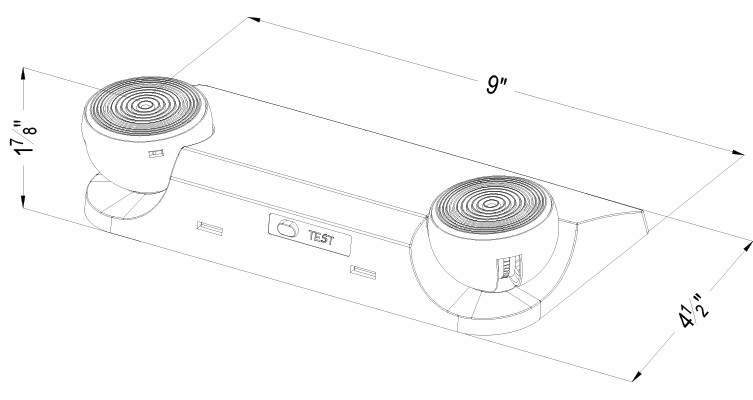

Modern Design LED Emergency Light | 315° Adjustable Lamp Heads | Subtle Wall Mounting Dimensions
