LED Emergency Light | White or Black Housing | Adjustable Heads

Base Code: EL-F2

Items marked FAST SHIP typically ship same day if order is placed before 2PM

LED Emergency Light | White or Black Housing | Adjustable Heads
Processing...

Qty

Fully adjustable white or black housing emergency light with energy-saving LED lamps in an economical package. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC.

Compatible Battery:  BAA-36

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp locations
  • Universal transformer for 120 or 277 VAC operation
  • Injection-molded, engineering grade, 5VA flame retardant, high impact thermoplastic housing
  • Quick connect back plate
  • Push-to-test switch & Charge rate / Power on LED indicator light
  • Fully automatic solid-state, two-rate charger

Previous Product Codes: EL-F2, EL-FW2, EL-FB2

Specifications

Dimensions
Height4.5"
Depth2.1"
Length9.5"
Weight5.00 lb

What's included?

  • White or Black All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-F2 Emergency Lighting series is contructed from injection-molded, highimpact, engineering-grade, 5VA flame retardant thermoplastic. White housing is standard.

Illumination

EL-F2 heads use long-lasting, efficient ultra bright white LEDs. The lens is constructed with a high-performance smooth thermoplastic reflector. Prismatic glare-free lens design for increased light distribution.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-F2 Emergency Light is designed with a maintenance-free 3.6V 700mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122°F (50°C).

Photometrics

Total Luminaire Lumens : 36.2 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 18ft for a 3ft path of egress.

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 14ft for a 6ft path of egress.

LED Emergency Light | White or Black Housing | Adjustable Heads Photometrics

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELCEL-F2 is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on top of housing and back plate.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

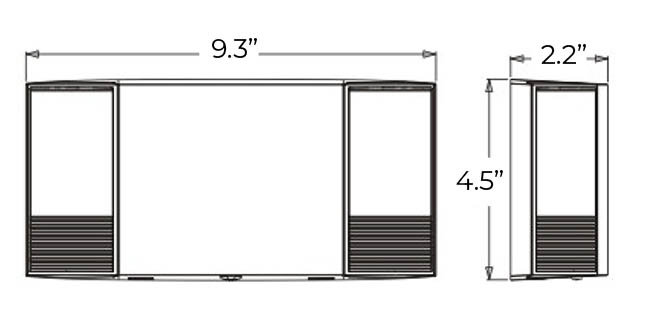

Dimensions

LED Emergency Light | White or Black Housing | Adjustable Heads Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Jake • 12/17/2018, 11:30:24 AM Can i put this on the ceiling?
A Exit Light Co. Yes, the EL-F2 has a universal mounting plate that will allow for either ceiling or wall mount.
Q Roger Greenley • 02/10/2019, 8:13:20 PM Does code permit use in school gym.
A Exit Light Co. We always recommend consulting with your local fire marshal. Please note, this unit is UL listed and meets or exceeds the following: UL 924, NEC, OSHA and NFPA 101 Life Safety Code requirements.
Q Dan Scheffey • 07/24/2020, 7:51:54 AM Hello. I am looking at this model on the site: LED Emergency Light | White or Black Housing | Adjustable Heads (Base Code: EL-F2). Is this unit approved for use in New York City, in a NYC residential condominium building with 5 (five) apartments? Thank you.
A Exit Light Co. This unit is not NYC Approved. Please search "NYC" in our search bar for all of our NYC approved fixtures.
Q ROBERTO DAVILA • 08/31/2020, 9:27:20 AM how long last back up battery i know said minimum 90 min and maximum time
A Exit Light Co. Each battery will have different run times however they are rated and tested to run for a minimum of 90 minutes as required by code.
Q Feroz Sahid • 08/31/2020, 9:52:23 PM Is it work on 220 V?
A Exit Light Co. The EL-F2 unit is only available for 120v or 277v.
Q Bernard Brown • 09/14/2020, 7:33:19 PM Do you have a model that can operate for two hour? Can you email me brochure? Thanks
A Exit Light Co. Our EL-HD units, if no remote heads are attached, can operate up to 4 hours on the battery back up.
