Emergency Light Recessed | 6" IC Rated

Base Code: EL-RG6


Emergency Light Recessed | 6" IC Rated
Processing...

Qty

Install beautiful architectural emergency lighting directly into ceiling (t-bar). Lamp provides bright, safe lighting. Includes maintenance-free 6V backup battery. Works on either 120 or 227 VAC.

Compatible Battery:  B6V4A

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Halogen Lighting

Halogen Lighting
This unit produces High Ouput Halogen light.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • 120/277V operation
  • Aluminum housing with plastic gimbal trim
  • IC rated for direct contact with insulation
  • Uses one 6V 8W halogen lamp
  • LED indicator light and test switch
  • Low voltage battery disconnect protected
  • Housing adjusts 1.375" to accomodate various ceiling thicknesses

Specifications

Dimensions
Width8"
Height7.125"
Diameter7"
Weight9.00 lb

Whats included?

  • 6" Adjustable Recessed Emergency Light
  • Installation Instructions & Hardware
  • SLA Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-RG6 is constructed with a steel mounting frame and 6" steel recessed housing with mounting bar hangars.  The impact-resistant thermoplastic adjustable trim is securely attached to housing with spring clips.

Illumination

The EL-RG6 series has an adjustable, ultra-bright 8W bi-pin halogen lamp head.  The sealed beam gimbal trim with smooth chrome-plated reflector and plastic lens offers optimal light distribution.

Emergency Operation

The EL-RG6 has a 6V maintenance-free, rechargeable Sealed lead acid battery.  Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Electrical Components

Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge.  Junction box with 3/4" knockouts for AC input.

Installation

Included Bar hangers allow for drywall or drop ceiling mount installations.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

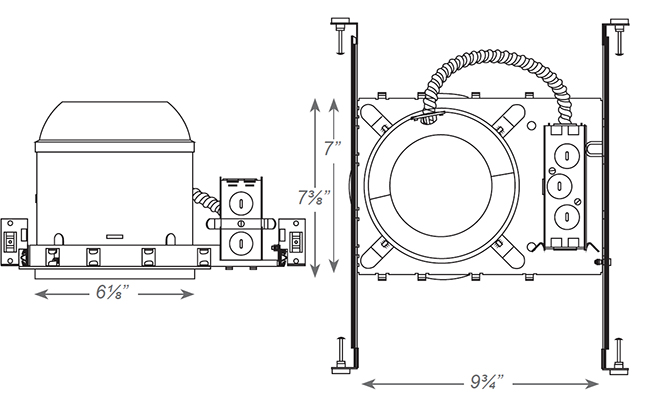

Dimensions

Emergency Light Recessed | 6
