Adjustable Recessed LED Emergency Light | New Work or Remodel Can | 120/277VAC
Base Code: EL-RG6
Items marked FAST SHIP typically ship same day if order is placed before noon
$129.00
The EL-RG6 Adjustable Recessed Emergency Down-light Unit is a reliable and discreet emergency lighting solution designed for commercial and institutional applications. Featuring an ultra-bright 8W bi-pin halogen or energy-efficient 1.5W LED lamp head, it utilizes a sealed beam PAR36-type gimbal trim with a smooth chrome-plated reflector and plastic lens for superior light distribution. The unit operates on dual 120/277V input with a maintenance-free 6V sealed lead acid battery, providing a minimum of 90 minutes of emergency illumination through its automatic solid-state transfer switch. Its durable steel housing with a 6" recessed design includes adjustable gimbal trim, junction box knockouts, and secure spring clip mounting. Compatible with drop ceiling installations, the EMRL-1 ensures compliance with UL924 and NFPA 101 Life Safety Code requirements and comes backed with a five-year electronics and housing warranty. For added installation flexibility, an optional remodel can option is also available, making the EL-RG6 a versatile choice for both new construction and retrofit projects.
Compatible Battery: B6V4A
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- 120/277V operation
- Aluminum housing with plastic gimbal trim
- IC rated for direct contact with insulation
- Uses one 6V 8W halogen lamp
- LED indicator light and test switch
- Low voltage battery disconnect protected
- Housing adjusts 1.375" to accomodate various ceiling thicknesses
Specifications
| Dimensions (May Vary by Model) | |
| Width | 8" |
| Height | 7.125" |
| Diameter | 7" |
| Weight | 9.00 lb |
What's included?
- 6" Adjustable Recessed Emergency Light
- Installation Instructions & Hardware
- SLA Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-RG6 is constructed with a steel mounting frame and 6" steel recessed housing with mounting bar hangers. The impact-resistant thermoplastic adjustable trim is securely attached to housing with spring clips. Remodel can option is also constructed from durable steel. Junction box is designed with 3/4" knockouts for AC input.
Illumination
The EL-RG6 series has an adjustable, ultra-bright 1.5W LED lamp; The sealed beam gimbal trim with smooth chrome-plated reflector and plastic lens offers optimal light distribution.
Emergency Operation
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-RG6 Emergency Light comes with maintenance-free 6V 4.5Ah rechargable sealed lead acid batteries.
Electrical Components
Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge.
Installation
The EL-RG6 is available with your choice of a new work can or a remodel can (retrofit can). New work cans are designed for new construction projects, where the housing is installed before the ceiling is finished and securely attached to the framing. Remodel cans, on the other hand, are ideal for retrofit applications, where the ceiling is already finished. They are installed by cutting an opening in the ceiling and securing the housing with mounting clips, making them a convenient solution for upgrades or renovations.
Mounting Configurations Explained
View Installation Instructions

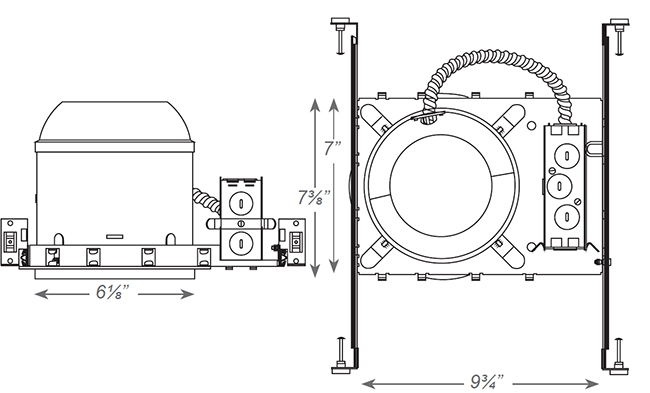

Dimensions
View Common Questions or Ask Your Own Below
Post a question and have an expert answer
Q
Stone Bridges • 11/20/2024, 4:03:16 PM
Does this light work as a standard can light or only come on during an emergency?
A
Exit Light Co.
The EL-RG6 is an emergency only light and does not function as a regular light fixture.
