LED Wet Listed Emergency Light | High Output Option
Base Code: EL-WETLED
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Wet Location Rated
- Universal 120-277VAC 50/60Hz
- Fully gasketed corrosion-resistant enclosure
- Includes two high output LED lamps
- Solid state charging circuit
- Short circuit and overload protection on DC output circuit
- Low voltage disconnect (LVD)
- Sealed momentary push-to-test switch
Specifications

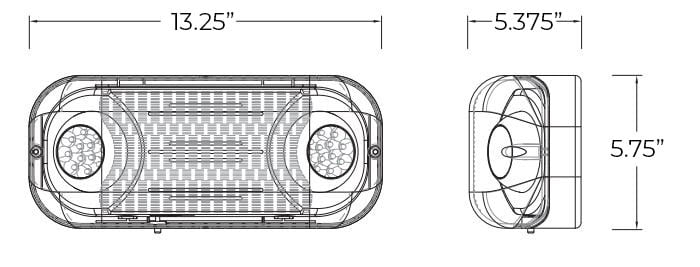

Dimensions (May Vary by Model) | |
Height | 5.76" |
Depth | 4.30" |
Length | 13.33" |
Weight | 4.00 lb |
What's included?
- Wet Listed All LED Emergency Light
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation (Located inside unit)
Construction
The EL-WETLED Emergency Light is constructed from injection molded, high impact V-O flame retardant thermoplastic housing. Polycarbonate lens is UV stabilized but some discoloration may occur over time if installed in direct sunlight. White housing is standard.
Illumination
Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. 12 high output LEDs per head.
Emergency Operation
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery - Battery Backup
The EL-WETLED series is designed with a maintenance-free LiFePO4 battery that provides a minimum emergency duration of 90 minutes. LiFePO4 batteries are known for their longevity, safety, and efficiency. With LiFePO4 batteries, safety is paramount – their formulation, lithium iron phosphate, is highly resistant to overheating and fire hazards. They are backed by an integrated battery management system (BMS) to prevent overcharge, over-discharge, and short-circuiting, ensuring peace of mind for users. Recharge time of the battery is 24 hours.
Battery Backup: 3.2V 1500mAh
Self Testing: 6.4V 4000mAh
Operational Temperature
Temperature Ratings | |
Standard Option | 41°F to 122°F |
Expanded Temperature | -4°F to 122°F |
Photometrics
Total Luminaire Lumens : 220-1450lm
Input Wattage: 1.9W
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 35ft for a 3ft path of egress (Battery Backup Model)
Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 118ft for a 3ft path of egress (Self-Testing Model)
Disclosure:
Spacing is measured in lab condition with an assumed open space,
no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor).
Actual spacing may vary depending on what environment the fixture is installed
in.
Self-Testing Option
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Electrical Components
Universal voltage input of 120-277VAC 50/60Hz input. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
Installation
The EL-WETLED Wet Listed Emergency Light can be both wall and ceiling mounted. The outside housing is designed with a universal knock-out pattern that adapts to different j-box configurations.
Mounting Configurations Explained
View Installation Instructions
