Compact Architectural LED Wall Pack Adjustable 90° Lens | 3k - 7k Lumen | AC Only & Battery Back Up
Base Code: ELF-AWP-CM
Items marked FAST SHIP typically ship same day if order is placed before noon
$175.00
The ELF-AWP-CM Sleek Architectural Adjustable Outdoor Rated Wall Pack is a versatile solution for everyday wall-mounted lighting needs. Designed for performance, style, and value, the EL-AWP eliminates the need to sacrifice quality for cost. Available in two sizes with lumen packages ranging from 3,200 to 7,000 lumens, it serves as a complete site-wide solution, replacing up to 400W metal halide wall packs. Its larger footprint ensures full coverage of unsightly stains left behind by older fixtures, providing a clean, professional installation without additional patching or repair. Configurable options such as emergency battery backup, photocell controls, and a choice of finish colors make the EL-AWP series adaptable to virtually any application. With sleek styling, reliable wet-location construction, and powerful LED performance, the EL-AWP is the ideal choice for retail centers, schools, office buildings, medical facilities, industrial parks, and more.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
IPX6 Rated
This unit is rated to IPX6 standards to resist ingress of dust and pressurized water.
Features
- UL/cUL Listed, NFPA70 and NFPA 101 Life Safety Code
- UV Resistant, IK10 Rated
- IP65 Listed for Damp or Wet Location
- Die cast aluminum housing
- 3200K-7000K Lumen Output
- UV stabilized polycarbonate lens
- Field Selectable CCT 3000K/4000K/5000K
- Maintenance-free battery
Specifications
| Dimensions (May Vary by Model) | |
| Height | 8.25" |
| Depth | 4.5" |
| Length | 11.12" |
| Weight | 20.00 lb |
What's included?
- Wall Pack Light Fixture
- Installation Instructions & Hardware
- LiFePO4 Battery
Construction
The ELF-AWP Series is built with a durable die-cast aluminum housing and features a UV-resistant powder-coated finish for long-lasting performance. This wall pack is available in three finish options—Dark Bronze, Black, and White—to complement a variety of architectural styles.
Emergency Operation
In the event of a power failure, the battery will keep the fixture illuminated for industry standard 90 minutes. Recharge time is 24 hours.
Battery - Battery Backup
The ELF-AWP LED Wall Pack is designed with a maintenance free LiFePO4 19.2V 3200mAh battery that provides a minimum of 90 minutes of battery backup run-time. LiFePO4 batteries are known for their longevity, safety, and efficiency. With LiFePO4 batteries, safety is paramount – their formulation, lithium iron phosphate, is highly resistant to overheating and fire hazards. They are backed by an integrated battery management system (BMS) to prevent overcharge, over-discharge, and short-circuiting, ensuring peace of mind for users.
Operational Temperature
| Temperature Ratings | |
| Standard Option | -4°F to 122°F |

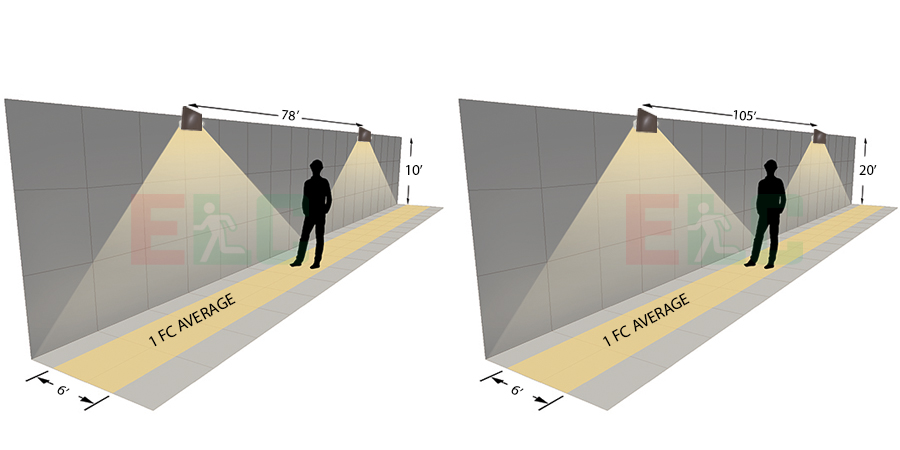

Photometrics
| Model | Normal Flux (AC Mode) | Lumen Output @ Emergency | 6ft Width Path | |||
|---|---|---|---|---|---|---|
| 10ft Height | 12ft Height | 15ft Height | 20ft Height | |||
| ELF-AWP-25W-EM | 3,200 lm | 3,000 lm | 78ft | 86ft | 95ft | 105ft |
| ELF-AWP-55W-EM | 7,000 lm | 3,000 lm | 78ft | 86ft | 95ft | 105ft |
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
Self-Testing Option
The ELF-AWP Series LED Wall Pack features a convenient toggle switch that allows you to easily select between manual testing and self-testing modes.
Illumination
The ELF-AWP Series is equipped with a field-selectable power module, allowing you to easily adjust the fixture’s power consumption to suit your application.
-
25W Model: Selectable output settings of 25W, 20W, 15W, or 10W (factory set to 25W)
-
55W Model: Selectable output settings of 55W, 50W, 45W, or 40W (factory set to 55W)
This adjustable design provides flexibility for energy savings, light output tuning, and compliance with site-specific lighting requirements.
| Feature | Compact Model |
|---|---|
| Normal Flux (AC Mode) |
|
| Emergency Output |
|
| CCT Options | 3000K, 4000K, 5000K (Field Selectable) |
| CRI | 70+ |
| Dimming | 0–10V / 1–10V regulation |
| Operation | General lighting with photocell sensor or emergency battery backup |
Electrical Components
The ELF-AWP Series Adjustable LED Wall Pack is compatible with 120–277V, 60Hz systems and is available as either a general lighting fixture or with an emergency battery backup option. Choose from 25W or 55W models to suit your needs. In emergency mode, the ELF-AWP provides reliable backup power with a minimum 90-minute runtime at 25W output and fully recharges in just 24 hours.The general lighting model includes a built-in photosensor, which can be disabled using the included black light shield (see installation instructions for details).
Installation
The ELF-AWP Series LED Wall Pack is suitable for wall mount installation with input voltage access through the rear knockouts or side conduit access holes.
Mounting Configurations Explained
View Installation Instructions

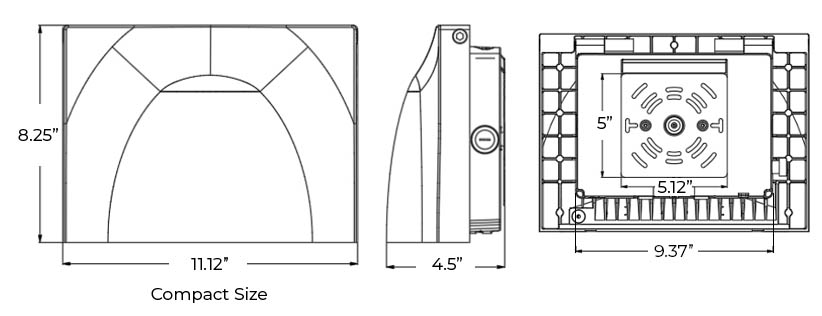

Dimensions
