LED Explosion Proof Emergency Light | Class 1 Division 1 | Adjustable Heads | 60 Day Lead Time

Base Code: ELX-C1D1

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Explosion Proof Emergency Light | Class 1 Division 1 | Adjustable Heads | 60 Day Lead Time

Lead Time: 60 Days


The ELX-C1D1 Emergency Light is specifically crafted for both hazardous environments and places where explosion-proof products are required. This emergency light seamlessly integrates energy-efficient LED technology with a robust enclosure, making it suitable for specialized locations. UL Listed for multiple Classes and Groups (See “Certification” section for a complete list) This unit offers several levels of protection against the elements, including dust, dirt and water and is designed for use in hostile environments that would otherwise damage ordinary sign components. Constructed of impact and corrosion resistant fiberglass reinforced polycarbonate. Housing is constructed from A360 die-cast aluminum for extra sturdiness.
Class 1 Division 1 Rated

Class I Division 1 Rated
This product has been tested for hazardous and industrial environments.

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

This Product Is Explosion Proof

Explosion Proof
This product is rated Explosion Proof.


  • Class I Division 1 Rated
  • Multiple UL Listings and Certifications
  • UL 844, 924, 1598A, 1598, 8750 (See Full List Below)
  • Universal input voltage 120-277VAC 50/60Hz
  • Internal solid-state transfer switch
  • Low Working Wattage for Energy Savings
  • Two Adjustable High-lumen Spot Lights


Dimensions (May Vary by Model)
Weight15.00 lb

What's included?

  • Explosion Proof Emergency Light
  • Mounting Brackets
  • Installation Instructions
  • Mounting Bolts NOT Included


The ELX-C1D1 Emergency Light series is constructed from A360 die-cast aluminum with a gray finish. Housing has 3 (sides and bottom) threaded conduit holes for easy hookup. Designed with tamper-proof screws for unauthorized access to the unit.


The ELX-C1D1 Emergency Light series is designed with two high-lumen fully adjustable LED lamp heads. Each lamp head is equipped with 12 LEDs putting out a total of 900lm. Beam angle is 90° or 120° and lamp adjustability is from 0° to 180° for optimized center to center spacing.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 180 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.

Battery - Battery Backup

The ELX-C1D1 Emergency Light series is designed with a maintenance-free 9.6V 4000 mAh rechargeable Li-Ion battery that provides a minimum emergency duration of 180 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard -4°F to 140°F


Class I, Division 1, Groups C, D
UL 844 Hazardous Locations ETL
Class I, Division 2, Groups A, B, C, D
UL 924 Emergency Lighting NEMA 4X Rated
Class II, Division 1, Groups E, F, G
UL 1598A Marine Outside Type IP 66 / Wet Locations
Class II, Division 2, Groups F, G
UL 1598 Wet Locations Impact Level: IK10 (Enclosure)
Class III UL 8750 LED Safety Impact Level: IK08 (Glass with Metal Guards)

Electrical Components

Universal 120-277 VAC operation. Unique LED indicator light. Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator.


The ELX-C1D1 Emergency Light series is suitable for wall mount installation with its stainless steel mounting brackets. It's recommended to use 7/16" bolts to mount the emergency light (bolts are not included). Threaded conduit feed applications are found around the housing.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

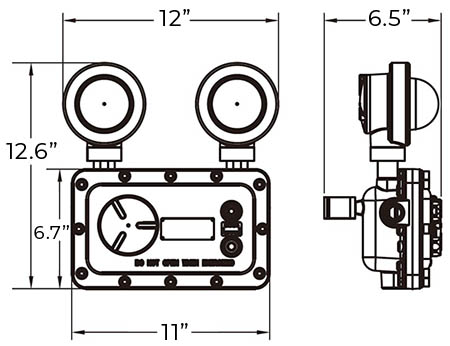

LED Explosion Proof Emergency Light | Class 1 Division 1 | Adjustable Heads | 60 Day Lead Time Dimensions
