Photoluminescent Running Man | Door Mounted | "Exit to Left / Right" Sign

Base Code: ELCPDM


Photoluminescent Running Man | Door Mounted | "Exit to Left / Right" Sign
Processing...


Qty
A simple way to add additional emergency egress signage. Meets stringent New York City safety codes (New York City Building Code Reference Standard RS 6-1 & 6-1A and Local Law 26 of 2004). Identifies doors leading to an exit pathway (fulfills RS 6-1 2.1.1 & 2.1.1.1).

No electricity or battery required. These signs can be easily placed on any flat surface using double-sided tape (not included). Under normal lighting conditions, these signs are highly visible. In the event of low (or absence of) lighting due to power failure the signs will "glow-in-the-dark." (Signs must be "charged" to glow, requires exposure to 54 LUX (5-ft candles) of LED, fluorescent, metal halide or mercury vapor light illumination).
Photoluminescent Glow In the Dark Lighting

Photoluminescent
This unit uses long lasting, electricity free Photoluminescent Lighting(Glow in the Dark) Technology.

This unit does not require use of electricity or a battery

No Electricity
This unit doesn't require electricity or a battery.

Features

  • Easy to mount
  • Emergency Egress/Safety Sign
  • Explosion proof semi-rigid plastic
  • No power or wiring required
  • Requires continued exposure to at least 54 LUX illumination
  • Meets New York City Building Code Reference Standard RS 6-1 & 6-1A and Local Law 26
  • Indoor use only

Previous Product Codes: PDM

Specifications

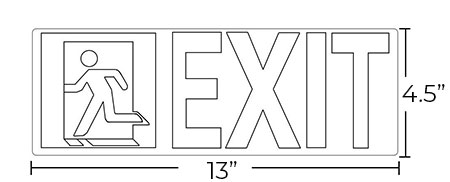

Dimensions
Width13"
Height4.5"
Depth0.625"
Weight2.00 lb
Photoluminescent Running Man | Door Mounted |

Construction

This photoluminescent Egress Sign is constructed with non-toxic, non-radioactive Glo Brite ® photoluminescence technology.

Illumination

Under normal lighting conditions, these signs are highly visible. In the event of low or no lighting due to power failure, the lettering on the signs will "Glow in the Dark". (Signs must be "charged" to glow -- requires 54 LUX (5ft candles) of fluorescent, metal halide or mercuty vapor light illumination for 60 minutes).

Emergency Operation

Upon failure of the normal utility power, this unit will provide at least 90 minutes of illumination.  *This sign must be charged for a minimum of 60 minutes prior to being fully operational.

Installation

No electricity or battery required.  These signs can be easily placed on any surface using double-sided tape (not included).

PDF Download   View Installation Instructions
