LED Hazardous Location Remote Head Lamp | Class 1 Division 2 | IP66 Rated | NEMA4X Rated
Base Code: RH-C1D2-HO
Items marked FAST SHIP typically ship same day if order is placed before noon
$300.00
The RH-C1D2-HO Hazardous Location High Output Remote Head Lamp provides powerful emergency illumination for hazardous and demanding environments. UL Listed for use in Class I, Division 2, Groups A, B, C & D rated areas with a T5 rating. The unit features a rugged polycarbonate enclosure with 5VA flame-retardant and UV-resistant construction, stainless steel hardware, and NEMA 4X and IP66 protection against dust, dirt and water. Designed for wet and cold locations with an operating temperature range of -22°F to 122°F. Available with one or two fully adjustable 5000K LED lamp heads for flexible light distribution and extended mounting spacing. NSF/ANSI 2 certified for splash-zone applications in food processing and food service environments.
Class I Division 2 Rated
This product has been tested for hazardous and industrial environments.
LED Lighting
This product uses energy efficient and long lasting LED's.
Battery Included
This product contains a battery for backup power. The battery must be connected during installation.
Features
- UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
- IP66 rated for Ingree Protection
- Rated for Class 1, Division 2, Group A, B,C, & D
- UL Listed for Wet Locations
- MR16 Base Style LED Lamps
Specifications
| Dimensions (May Vary by Model) | |
| Height | 5.5" |
| Depth | 4.25" |
| Length | 8.88" |
| Weight | 15.00 lb |
What's included?
- Hazardous Location Remote Head Light
- Mounting Hardware
- Installation Instructions
Construction
Polycarbonate enclosure with 5VA flame-retardant and UV-resistant construction, with stainless steel screws for outdoor applications. The RH-C1D2-HO is available with a white or black housing.
Illumination
Available with either one or two fully adjustable LED lamp heads, the RH-C1D2-HO provides high lumen output for emergency applications with extended mounting spacing and a 5000K LED color temperature. For detailed light distribution and spacing information, see PHOTOMETRICS.
Emergency Operation
During a power failure, the RH-C1D2-HO is powered by the connected remote-head-capable emergency unit. When connected to a properly sized compatible unit, the remote head provides emergency illumination for a minimum of 90 minutes. Emergency runtime is dependent on the capacity and remote load capability of the connected emergency unit.
Battery - Battery Backup
The RH-C1D2-HO LED remote head lamp series is not equipped with a battery. This remote head must be connected to a battery-equipped unit that is capable of powering remote heads.
Operational Temperature
| Temperature Ratings | |
| Series | Temperature |
| Standard | -22°F to 122°F |

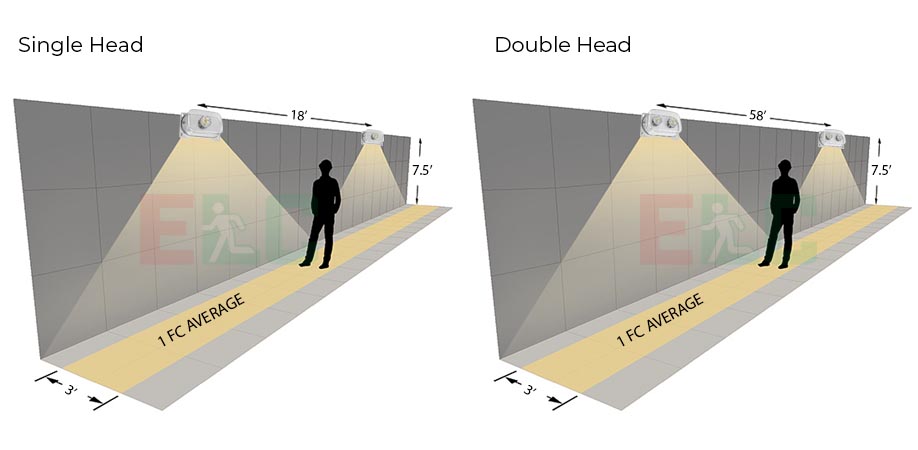

Photometrics
Total Luminaire Lumens : 220lm-440lm
| Model No. | 7.5 ft Height | 10 ft Height | ||
|---|---|---|---|---|
|
6 ft Width Corridor 3 ft Width Path |
6 ft Width Corridor 6 ft Width Path |
6 ft Width Corridor 3 ft Width Path |
6 ft Width Corridor 6 ft Width Path |
|
| Single Head (220 lm) | 18 ft | 16 ft | 25 ft | 24 ft |
| Double Head (440 lm) | 58 ft | 50 ft | 50 ft | 48 ft |
Disclosure: Spacing values are based on photometric calculations under laboratory conditions. Actual spacing and illumination levels may vary depending on mounting conditions, room geometry, surface reflectance, obstructions, and other site-specific factors.
Electrical Components
The RH-C1D2 LED remote head lamp series is suitable for DC 3-12V input, 1.5W for a single lamp head, and 3W for two lamp heads.
Installation
The RH-C1D2-HO is suitable for surface wall mounting using its die-cast mounting bracket. Designed for hazardous locations classified as Class I, Division 2, Groups A, B, C & D with a T5 rating. The unit is NEMA 4X and IP66 rated for wet locations and is suitable for outdoor applications.
Mounting Configurations Explained
View Installation Instructions

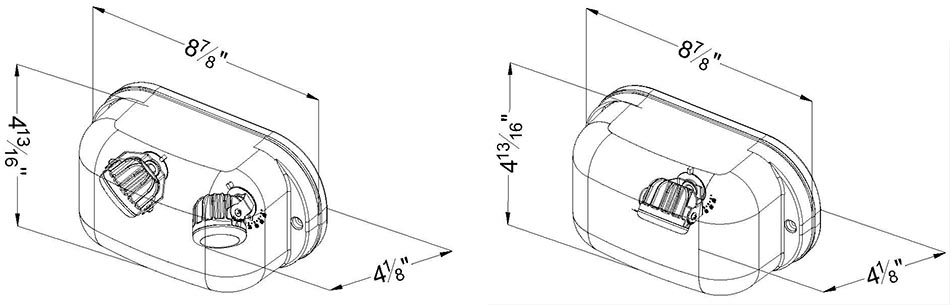

Dimensions
