Large Weather Proof Vandal Resistant Polycarbonate Shield | IP65 Rated | NEMA 4X Rated
Base Code: VR-CO
Items marked FAST SHIP typically ship same day if order is placed before noon
$44.00
Protect your Emergency Light from vandalism while adding environmental protection with this sturdy clear polycarbonate shield guard. Designed for flush-mount installation, this shield features a durable plastic enclosure with 5VA flame-retardant and UV-resistant materials, along with stainless steel screws for corrosion resistance. It is suitable for wet locations per UL924 and carries both IP65 and NEMA 4X ratings for enhanced environmental durability. The UV-resistant polycarbonate lens ensures long-lasting clarity, and the material meets the glow wire test standard at 850℃. This guard is suitable for wall-mount applications and includes an external test switch button on the enclosure. Fully RoHS compliant, it offers a reliable and protective solution for safeguarding your emergency lighting fixtures.
Features
- Suitable for wet location per UL924
- IP65 Rated
- NEMA 4X Rated
- Polycarbonate shield guard for vandal and harsh environmental protection
- Provide external test switch button on enclosure
Specifications
| Dimensions (May Vary by Model) | |
| Height | 8.56" |
| Depth | 4.5" |
| Length | 18" |
| Weight | 0.00 lb |
What's included?
- Polycarbonate Shield
- Mounting Hardware - Wall Anchors and Stainless Steel Screws
Construction
The VR-CO shield is made from tough 5VA flame-retardant, UV-resistant polycarbonate. This material meets glow-wire testing requirements at temperatures up to 1562°F, ensuring exceptional durability and safety.
Installation
The VR-CO shield is suitable for wall mount installation; mounting hardware included.
Mounting Configurations Explained
View Installation Instructions

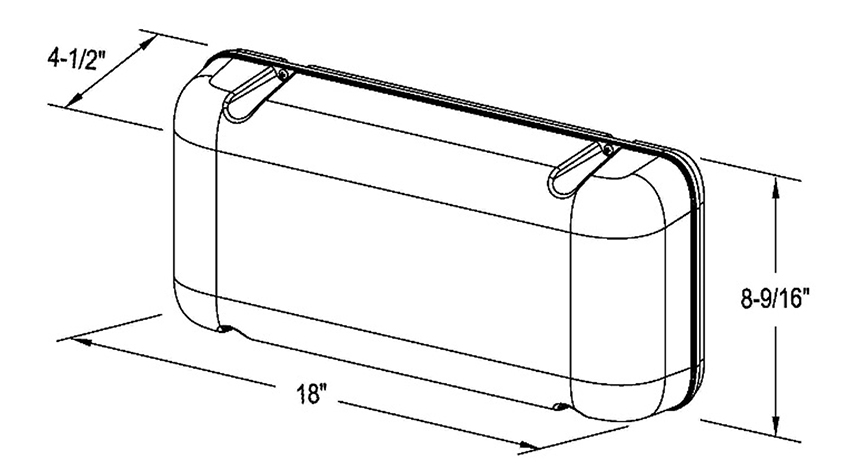

Dimensions
