Micro Red LED Exit Light Combo | Adjustable Heads

Base Code: COMBOJR-R

Items marked FAST SHIP typically ship same day if order is placed before noon

Micro Red LED Exit Light Combo | Adjustable Heads
Processing...

Alternative Product: COMBOJR2-R

Qty
The COMBOJR is a durable and popular exit sign / emergency light combo that is ideal for entrances, retail areas, corridors, stairwells, and other places that require emergency lighting. A simple, yet well-built 2-in-1 combination of both exit and emergency lamps. The COMBOJR exit sign combo is equipped with a maintenance-free 3.6V NiCad battery that provides 90 minutes of emergency lighting in case of a power failure. It works on either 120 or 277 VAC power. Includes 2 faceplates that allow for single or double-sided view; each faceplate has field installable directional chevrons. Optional Remote Head Capable model allows for additional 3.6V remote lamp heads to be connected and wired at a different location where additional lighting is needed – See “Remote Head Capable” section for more information.

Compatible Remote Head(s): RHP-L-3V, RHB-L-MV, RHB-WPL-MV
To use with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: COMBOJR-R-W-RH.

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA NFPA 70, and NFPA 101 Life Safety Code
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Rated for Damp Locations
  • Fully adjustable head lamps
  • Universal mounting canopy for top installation or flush mount to wall
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation

Specifications

Dimensions (May Vary by Model)
Height7.2"
Depth2"
Length16.45"
Weight10.00 lb

What's included?

  • RED LED Combo Exit Sign / Emergency Light
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation

Construction

The COMBOJR-R series is contructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

Illumination

Uses (2) 1W lamps that distribute even white light. EXIT portion uses long-lasting, efficient red LEDs.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The COMBOJR-R Combo Exit Light series is designed with a maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 0°C to 40°C / 32°F to 104°F

Remote Head Capable Option

The remote head capability option allows the COMBOJR unit to supply power to up to two additional 3.6V LED remote heads. The unit can supply power to either 2 single head remote lamps or 1 double head remote lamp. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The COMBOJR-R is suitable for surface wall and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

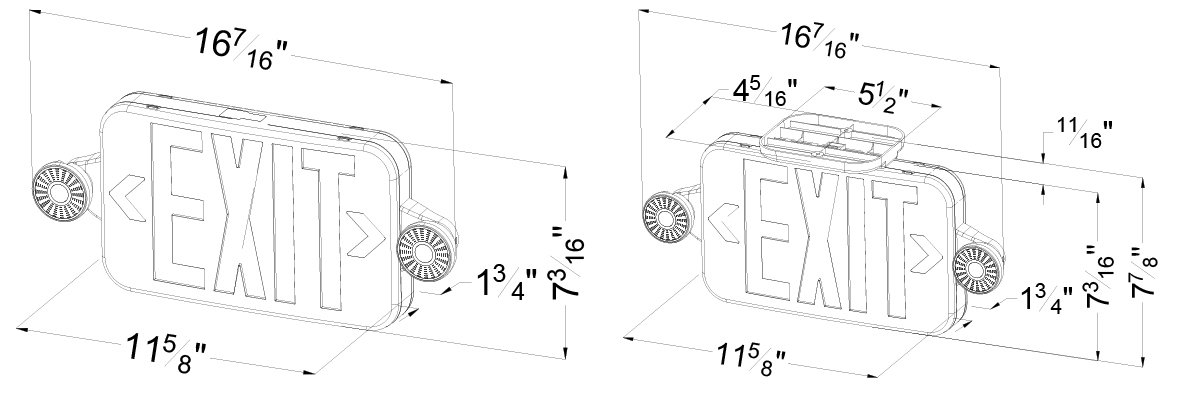

Dimensions

Micro Red LED Exit Light Combo | Adjustable Heads Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q ROBERTO DAVILA • 08/13/2020, 8:49:56 PM EMERGENCY LIGHTS NEED WITH 5 HRS BATTERY DURATION
A Exit Light Co. We do not carry any fixtures rated for a 5 hour battery backup.
Q David M. Winters • 10/11/2020, 6:58:13 PM Are these combo packs selfsufficient meaning they do not need to be hardwired to building electricity
A Exit Light Co. These units do require hardwired installation.
Q Rob Voorhees • 10/15/2020, 11:47:26 AM what is the candle ft output of this o e?
A Exit Light Co. This unit produces 1 ft candle at the standard 7.5ft mounting height.
Q joseph j gentelin • 10/26/2021, 7:32:22 PM can this be mounted to ceiling light fixture box
A Exit Light Co. The COMBOJR-R comes with a mounting bracket that can be used with a standard J-Box.
Q whitney • 06/20/2023, 3:55:18 PM How do you change the light bulbs in these?
A Exit Light Co. The Exit Light Co does not recommend changing the LED lights in the unit. Alterations to the unit will void the warranty and may not be up to local fire codes. We always recommend checking with your local fire marshal to be sure fixtures meet required codes.
Q Brian Heffner • 08/14/2023, 9:29:26 AM How long do the 3.6v nicad last till they need to be replaced?
A Exit Light Co. Several factors play in the life span of battery life; weather, usage, etc. NiCad Batteries tend to last between 4-5 years in optimal conditions.
Q Dwayne Williams • 07/23/2024, 7:11:22 PM Can these exit signs be be flush mounted to a wall as well as ceiling mounted?
A Exit Light Co. The COMBOJR-R is suitable for surface wall and top mounting via included canopy.
