LED Recessed Architectural Emergency Light | Ceiling Mount | Aluminum 48' Light Spread

Base Code: EL-LEG

Items marked FAST SHIP typically ship same day if order is placed before noon

LED Recessed Architectural Emergency Light | Ceiling Mount | Aluminum 48' Light Spread
Processing...
$112.00

Get Help

Lead Time: FAST SHIP

Qty

NEW! EL-LEG decorative recessed LED light is the perfect addition to your lighting needs. Two adjustable lamp heads and thin profile, makes it the perfect emergency light for any types of rooms, hallways, theater rooms, warehouse environments etc. The EL-LEG is UL 924, NEC, OSHA and NFPA 101 Life Safety Code approved. It features 2 adjustable ultra bright LED lamp heads and an LED indicator light with push-to-test button. The recessed light, has an architecural aluminum trim plate that makes it an elegant unit. It is designed to work with both drywall and ceiling mount installations.

Compatible Battery:  3.6V 3200mAh LiFePO4

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • LED indicator light with push-to-test switch
  • Narrow and Wide Lens
  • Universal 120-277 VAC 50/60Hz
  • Solid-state switcing transistor - eliminates damage contacts

Specifications

Dimensions (May Vary by Model)
HeightSee Diagram"
DiameterSee Diagram"
Weight6.00 lb

What's included?

  • Recessed Light
  • 2 Trim Plates (Round and Rectangular)
  • Installation Instructions & Hardware
  • LiFePO4 Battery - Must connect the battery after installation (Located inside unit)

Construction

The EL-LEG Recessed Emergency Light is constructed from 20-gauge steel back box with junction box, trim plate is constructed out of aluminum. Friendly configuration design for quick and easy installation.

Illumination

The EL-LEG Recessed Emergency Light use long-lasting, efficient ultra bright white LEDs CCT 5000k. Equipped with 2 adjustable LED lamps.

Emergency Operation

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The EL-LEG Recessed Emergency Light is designed with a maintenance-free 3.6V 1800mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option50°F to 104°F

Photometrics

Total Luminaire Lumens : 400lm
Input Wattage: 2.0
Input mA: 22
Hz: 50/60

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 42ft for a 3ft path of egress.

Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 48ft for a 3ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

LED Recessed Architectural Emergency Light | Ceiling Mount | Aluminum 48' Light Spread Photometrics

Electrical Components

Universal voltage input 120/277 VAC 50/60Hz operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Features battery over discharge protection.

Installation

The EL-LEG is suitable with drywall or drop ceiling mount installations.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

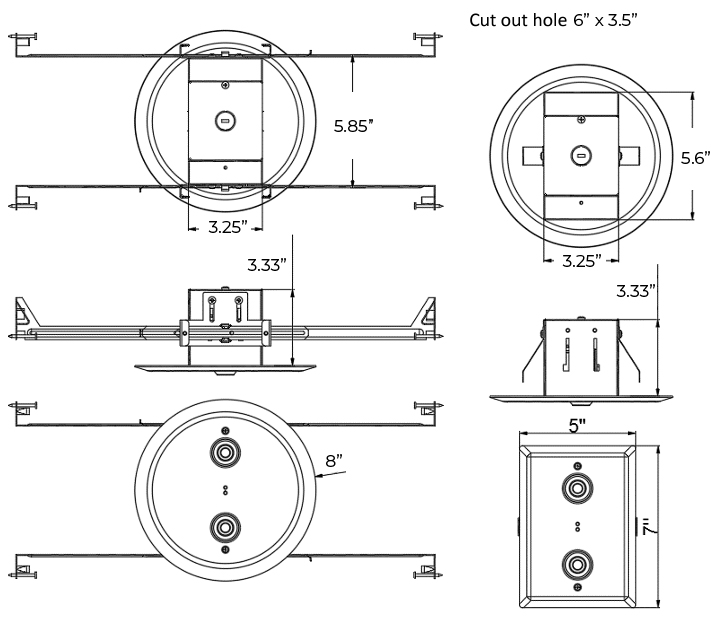

Dimensions

LED Recessed Architectural Emergency Light | Ceiling Mount | Aluminum 48' Light Spread Dimensions

Customer Questions & Answers
Post a question and have an expert answer



Q Ken Wilkinson • 02/01/2023, 2:39:12 PM Looking at EL-LEG. Is this fixture available for a remodel style install? Can you recommend a remodel style emergency light?
A Exit Light Co. EL-LEG is suitable for remodel style.
Q Dave Carroll • 11/16/2023, 7:19:04 AM Hi, I see in the measurements drawings you may also have a square recessed fixture instead of round. But, I don’t see the square option when buying…… can you help me ?
A Exit Light Co. The EL-LEG unit comes with two trim plates (one round and one rectangular) so you may use whichever suits your needs best.
