Edge Lit Green LED Exit Sign | Recessed Mount

Base Code: ELSM-G-RM

Items marked FAST SHIP typically ship same day if order is placed before 2PM

Edge Lit Green LED Exit Sign | Recessed Mount
Processing...
$106.00

Get Help
Qty

The ELSM-G-RM is an LED Recessed Mount Edge Lit Exit Sign with Green "EXIT" letters suited for any high end design application. The Premium aluminum housing and V-Stabilized ultra-clear acrylic paneling makes this Green LED letter exit sign architecturally pleasing. Installable press-on directional arrows can be placed to point towards exit direction. Compatible with both sheet-rock and drop ceiling/remodel applications.

Available in Surface Mount (ELSM-G)

Compatible Battery:  BAA-48R

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA, and NFPA 101 Life Safety Code
  • UL Listed for USA
  • Listed for damp locations
  • Engineering grade aluminum extruded housing
  • 5 watts energy usage (battery backup models)
  • Field installable directional indicators
  • AC On indicator light and push-to-test switch (battery backup models)
  • 120/277V operation
  • Please allow 3-5 days for black or white finishes - Call for rush orders

Previous Product Codes: ELR-G, ELR-GSR

Specifications

Dimensions
Width14.5"
Height11"
Depth4.5"
Weight12.00 lb

What's included?

  • Recessed Mount Green LED Exit Sign
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored/White Double Sided "EXIT" faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The ELSM-RM Edge Lit Exit Sign series is designed with premium-grade, extruded aluminum housing. The trim assembly can easily be detached from below, providing easy and convenient access for service maintenance. Self-adhesive chevrons (arrows) and template guide is provided for arrow installation.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELSM-RM Recessed Mount Exit Sign is designed with a 4.8V NiCad maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

Operational Temperature

Temperature Ratings
Standard Option 0°C to 50°C / 32°F to 122°F

Self-Testing Option

This unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the multi-color LED indicator light will indicate the status and adjust when it has been corrected. The self-test feature will automatically perform code compliant testing for five minutes every 28 days and 90 minutes every six months.

Electrical Components

Dual voltage input 120/277 VAC operation. 220V/50Hz Special voltage available. LED display indicates AC/ON. An external push button test switch on battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

Installation

The ELSM-RM LED Exit Sign allows unit to be ceiling recessed for drop ceiling or new construction application only.  Optional field installable directional arrow indicators and all hardware is included.

Mounting Configurations   Mounting Configurations Explained

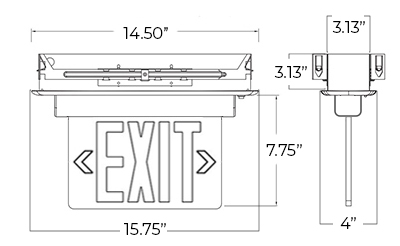

Dimensions

Edge Lit Green LED Exit Sign | Recessed Mount Dimensions
