Edge Lit Red LED Exit Sign | Surface Mount

Base Code: ELSM-R

Items marked FAST SHIP typically ship same day if order is placed before 2PM

Edge Lit Red LED Exit Sign | Surface Mount

Get Help

Lead Time: Any Non-Standard Options: 3-5 Day


A premium aluminum housing and UV stabilized ultra-clear acrylic paneling makes this Red LED letter exit sign architecturally pleasing. The included universal mounting kit allows top, lateral or flush installation. Installable press-on directional arrows can be placed to point towards exit direction.

Available in Recessed Mount (ELSM-R-RM)

Compatible Battery:  B6V23A-2

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This unit uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 924, NEC, OSHA, and NFPA 101 Life Safety Code
  • UL Listed for USA
  • Listed for damp locations
  • Engineering grade aluminum extruded housing
  • 5 watts energy usage (battery backup models)
  • Field installable directional indicators
  • AC On indicator light and push-to-test switch (battery backup models)
  • 120/277V operation
  • Please allow 3-5 days for black or white finishes - Call for rush orders

Previous Product Codes: ELSM-R and ELR-R


Weight10.00 lb

What's included?

  • Red LED Exit Sign
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored/White Double Sided "EXIT" faceplate (extra cost)
  • Mounting Canopy, Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation


The ELSM-R Edge Lit Exit Sign series signage panels are constructed of highpolish injection molded virgin acrylic. Mylar divider standard on double sided units. Standard housing finish is aluminum. Also available with white or black housing finish.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELSM-R Exit Sign is designed with a maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122F (50°C).

Self-Testing Option

This unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the multi-color LED indicator light will indicate the status and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.

Electrical Components

Dual voltage input 120/277 VAC operation. 220V/50Hz Special voltage available. LED display indicates AC/ON. An external push button test switch on battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.


The ELSM-R LED Exit Sign series is suitable for wall, sloped, high, or standard ceiling mounting. Optional Recessed mount unit allows unit to be ceiling recessed for drop ceiling or new construction application only. Both options include field installable directional arrow indicators. All hardware is included.

Mounting Configurations   Mounting Configurations Explained

PDF Download   View Installation Instructions

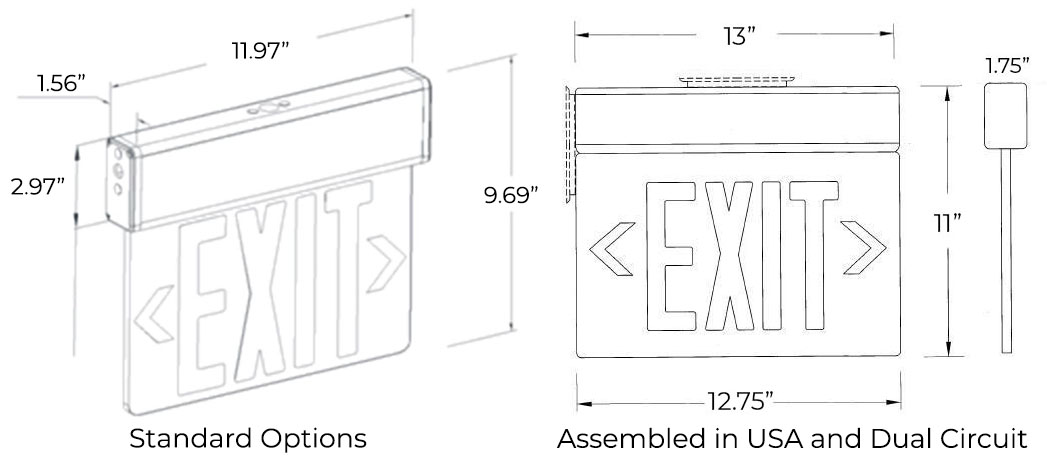

Edge Lit Red LED Exit Sign | Surface Mount Dimensions

Customer Questions & Answers
Post a question and have an expert answer

Q Daniel Monahan • 09/13/2019, 3:13:13 PM Edge Lit Red LED Exit Sign | Surface Mount Base Code: ELCELSM-R My Question is: What are the dimensions of the letters? Height and width? Thanks
A Exit Light Co. The height of the letters are the required six inches.
Q Dylan • 10/22/2019, 12:42:17 PM What is the difference between this unit and the ELRT-R Edge Lit Exit Sign?
A Exit Light Co. Although both units are Edge Lit, the ELRT-R has an adjustable angle faceplate. The faceplate of the ELSM is fixed in place.
Post a question and have an expert answer
