This Red LED Edge Lit Exit Sign is suitable for ceiling mount installation providing a slick and clean look. When purchasing this unit, a recess box is assembled with the exit sign panel that allows it to be installed recessed into the ceiling (instructions included). The edge lit panel is constructed of high-grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!

*USA Option: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.


Compatible Battery:  Battery Backup and Self-Testing Model: BAA-48R

This product has been tested to meet all required U.S. standards by Underwriters Laboratories, Inc. (UL), the most widely recognized U.S. nationally recognized testing laboratory (NRTL).

UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

LED Lighting
This product uses energy efficient and long lasting LED's.

Battery Included

Battery Included
This product contains a battery for backup power. The battery must be connected during installation.

Features

  • UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
  • Listed for damp location
  • Recessed Mounting Only
  • Aluminum housing with high grade acrylic face
  • Field Installable Arrows for Left, Right or Both directions.
  • Long life LED illumination
  • Test switch and charge rate indicator on battery backup models
  • Dual 120/277 volt operation

Specifications

Dimensions
WidthSee Diagram"
HeightSee Diagram"
LengthSee Diagram"
Weight10.00 lb

What's included?

  • Red LED Exit Sign
  • Recessed Mounting Kit
  • Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
  • Mirrored Double Sided "EXIT" faceplate (extra cost)
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation

Construction

The ELR Edge Lit Exit Sign series housing is contructed from premium-grade, extruded aluminum. Easily access the battery and internals with detachable trim piece. Standard housing color is aluminum with other choices available.

Illumination

The ELR Edge Lit Exit Sign series has ultra bright, emergency efficient, and long lasting LEDs. The UV stabilized ultra clear acrylici edgelit panel provides consistent and uniform illumination.

Emergency Operation

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Battery - Battery Backup

The ELR Edge Lit Exit Sign series is designed with a 4.8V maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.

Operational Temperature

Temperature Ratings
Standard Option32°F to 122°F

Self-Testing Option

This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.

Electrical Components

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.

Installation

The ELR Edge Lit Exit Sign series is suitable for ceiling and wall recessed mounting and compatible with drywall or dropceiling mount installations. Includes field installable directional arrow indicators. All hardware is included.

Mounting Configurations   Mounting Configurations Explained

Dimensions

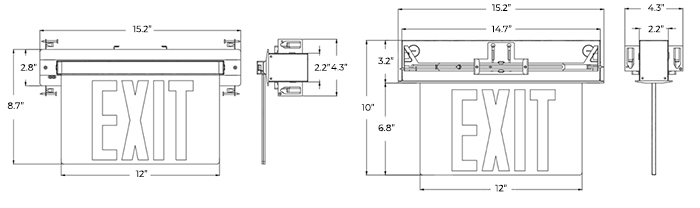

Edge Lit Red LED Exit Sign | Recessed Mount Assembly | Ceiling and Wall Installation | Adjustable Dimensions
